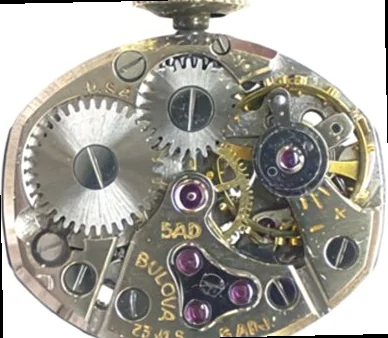

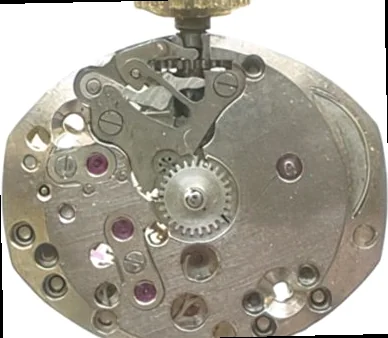

Bulova 5AD Movement Specifications, Beat Rate & Dimensions

thumb 1 thumb 2 thumb 3 thumb 4 thumb 5 thumb 6 thumb 7 thumb 8 thumb 9

Technical Caliber Datasheet

ManufacturerBulova
Caliber ReferenceBulova 5AD
Movement TypeManual
Diameter (Lignes)—
Diameter (mm)12.97 mm
Height / Thickness3.1 mm
Jewel Count23 Jewels
Beat Rate / Frequency18,000 BPH
Lift Angle315°
Power Reserve38 hours
EscapementSwiss Lever
Production Period1952

Historical Reference & Restoration Notes

The Bulova 5AD is a celebrated example of vintage precision engineering. Featuring 23 jewels and operating at 18,000 BPH, surviving examples are prized by collectors and restorers. For further technical reference on vintage watch movements, consult the Rolex Forums technical reference.

Restoration enquiries: antiquewrist.com
