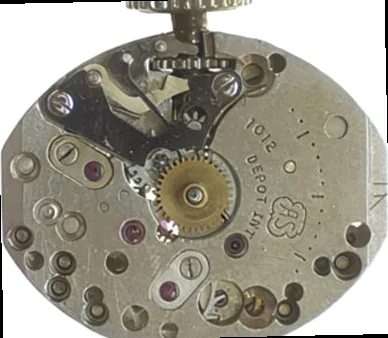

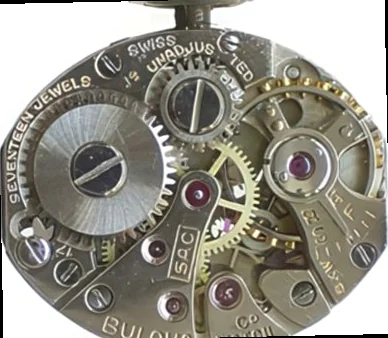

Bulova 5AF Movement Specifications, Beat Rate & Dimensions

thumb 1 thumb 2 thumb 3 thumb 4 thumb 5 thumb 6

Technical Caliber Datasheet

ManufacturerBulova
Caliber ReferenceBulova 5AF
Movement TypeManual
Diameter (Lignes)—
Diameter (mm)13.0 mm
Height / Thickness3.5 mm
Jewel Count17 Jewels
Beat Rate / Frequency18,000 BPH
Lift Angle51°
Power Reserve38 hours
EscapementSwiss Lever
Production Period1949

Historical Reference & Restoration Notes

The Bulova 5AF is a celebrated example of vintage precision engineering. Featuring 17 jewels and operating at 18,000 BPH, surviving examples are prized by collectors and restorers.

Restoration enquiries: antiquewrist.com
