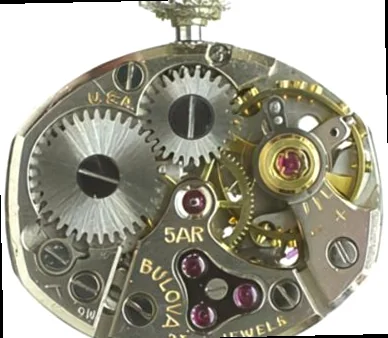

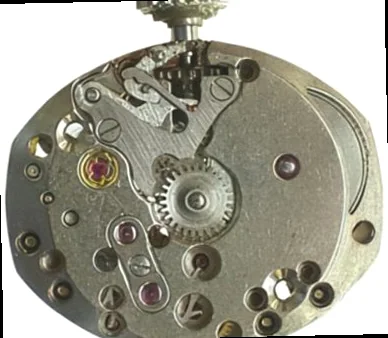

Bulova 5AR Movement Specifications, Beat Rate & Dimensions

thumb 1 thumb 2 thumb 3 thumb 4 thumb 5 thumb 6

Technical Caliber Datasheet

ManufacturerBulova
Caliber ReferenceBulova 5AR
Movement TypeManual
Diameter (Lignes)—
Diameter (mm)12.97 mm
Height / Thickness3.2 mm
Jewel Count23 Jewels
Beat Rate / Frequency18,000 BPH
Lift Angle315°
Power Reserve38 hours
EscapementSwiss Lever
Production Period1966

Historical Reference & Restoration Notes

The Bulova 5AR is a celebrated example of vintage precision engineering. Featuring 23 jewels and operating at 18,000 BPH, surviving examples are prized by collectors and restorers. For authentic restored timepieces and bespoke pocket-to-wrist conversions, visit View Available Converted Pocket Watches.
